Technical Specifications
Capacity
- Type
- Virtual interfaces (VLANs)
- Value
- 4000
Dimensions & Weight
- Width
- 14.4 in
- Depth
- 16 in
- Height
- 1.7 in
- Weight
- 11.73 lbs
Environmental Parameters
- Min Operating Temperature
- 32 °F
- Max Operating Temperature
- 104 °F
- Humidity Range Operating
- 10 – 90% (non-condensing)
Header
- Compatibility
- PC
- Manufacturer
- Cisco Systems
- Packaged Quantity
- 1
- Product Line
- Cisco Catalyst
- Model

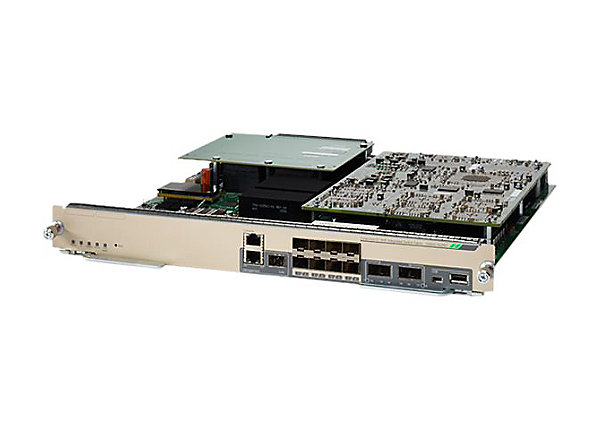

- 6800 Series Supervisor Engine 6T XL
- Brand
- Cisco
Interface Provided
- Qty
- 8
- Type
- USB
- Connector Type
- RJ-45
Miscellaneous
- Compliant Standards
- AS/NZ 3548 Class A, CISPR 22 Class A, CISPR 24, CSA 22.2 No. 60950, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, FCC Class A certified, ICES-003 Class A, IEC 60950, UL 60950, VCCI Class A ITE
Networking
- Type
- Control processor
- Form Factor
- Plug-in module
- Connectivity Technology
- Wired
- Data Link Protocol
- 10 Gigabit Ethernet
- Compliant Standards
- IEEE 802.1ae, IEEE 802.1x
- Features
- 802.1x authentication, Access Control List (ACL) support, Class of Service (CoS), Control plane protection (CoPP), Deficit Weighted Round Robin (DWRR), DiffServ Code Point (DSCP) support, DiffServ support, Flexible NetFlow (FNF), IGMP snooping, Instant Access (IA), IPv4 support, IPv6 support, Label Distribution Protocol (LDP), Layer 3 switching, MACsec support, Management Information Base (MIB), MPLS support, MPLS VPN, NAT support, NetFlow, PIM snooping, Port Security, Sampled NetFlow, Traffic shaping, Tunneling, Unicast Reverse Path Forwarding (URPF), Virtual Private LAN Service (VPLS), Virtual Route Forwarding-Lite (VRF-Lite), Virtual Routing and Forwarding (VRF), Virtual Switching System (VSS), VPN support, Weighted Random Early Detection (WRED)
- Routing Protocol
- IGMPv3, MLDv2, MPLS
Performance
- Type
- IPv6 routing
- Value
- 390 Mpps
Power Device
- Power Consumption Operational
- 354 Watt
RAM
- Installed Size
- 4 GB
- Max Supported Size
- 4 GB
